HSV891 matrix HDMI extender over TCP IP with audio extractor and IR reverse control

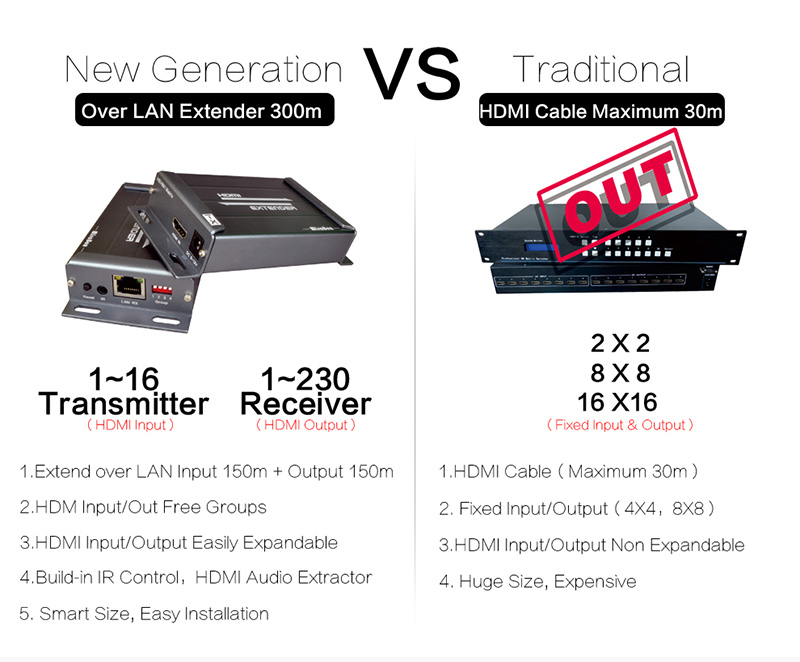

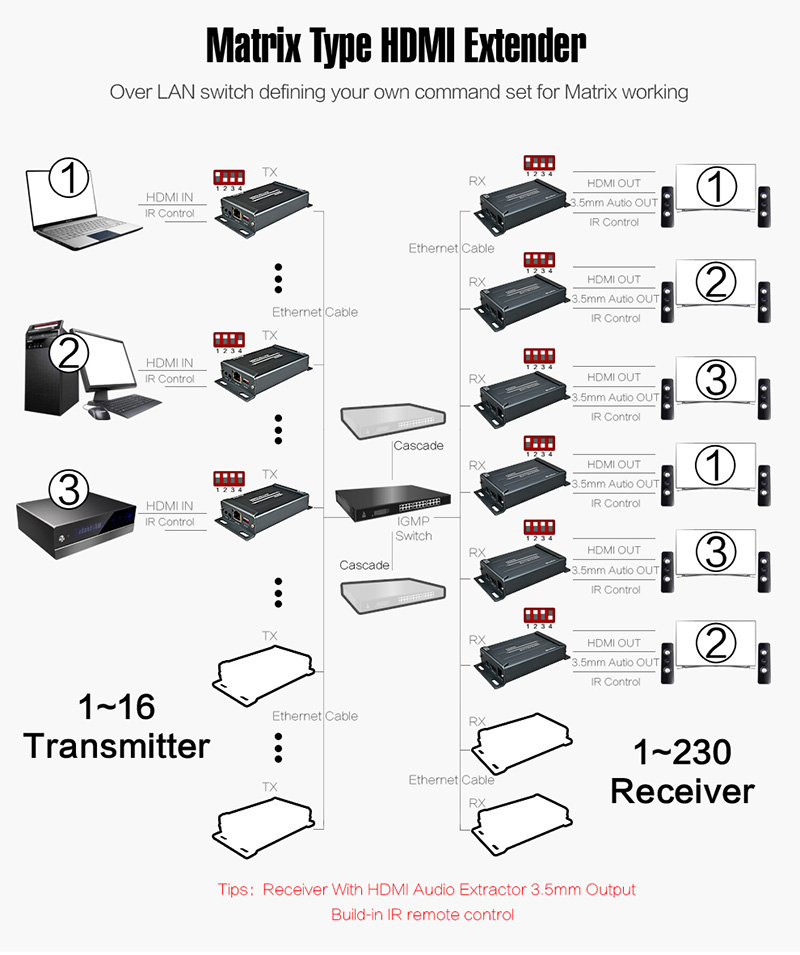

1.HSV891 Matrix adopts an intelligent discrete design, which could be combined as a flexible HDMI matrix. The input HDMI channel could be configured to maxim of 16 channels, output HDMI channel could be configured to maxim of 236 channels.

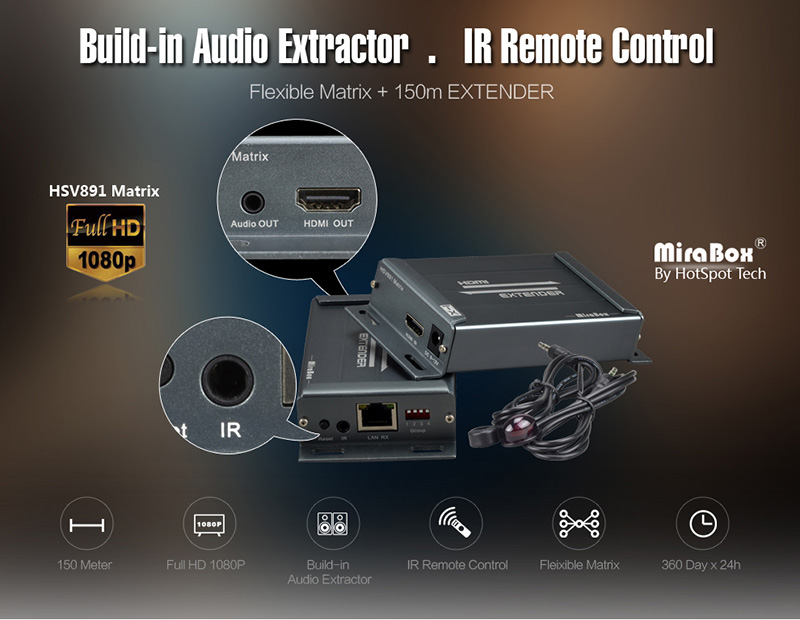

2.HSV891Matrix supports sending IR remote control signal from the receiver side to the sender side which could be used to control HDMI source devices.

3.HSV891Matrix also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.

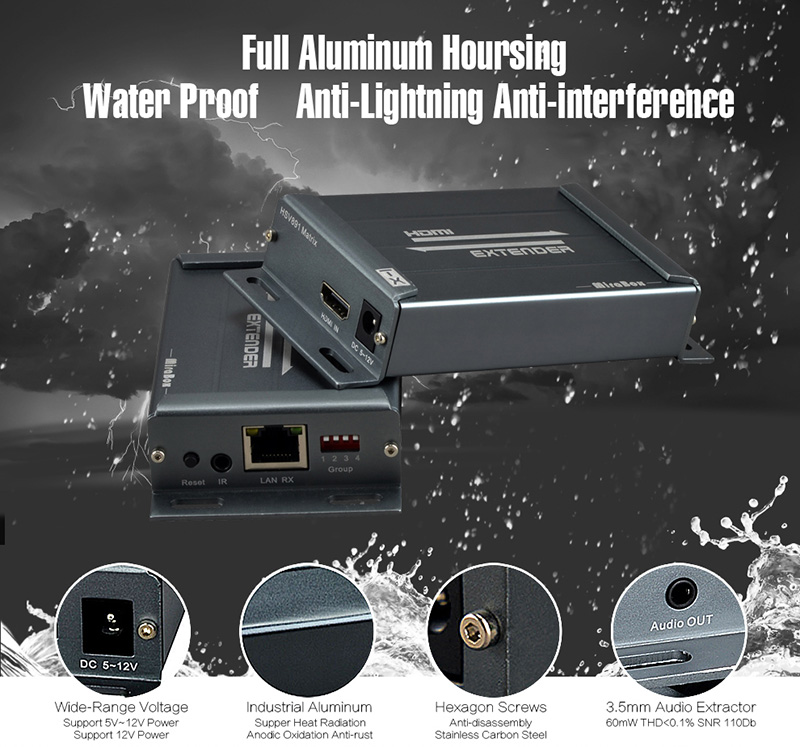

4.HSV891Matrix have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shielding.

OEM/ODM Manual Video Download
    File name File size Upload date Download
Overview

Features

1. This HDMI IR Extender Matrix supports maxim 16 input channel and 236 output channel HDMI signal, and channels could be dynamic configured.

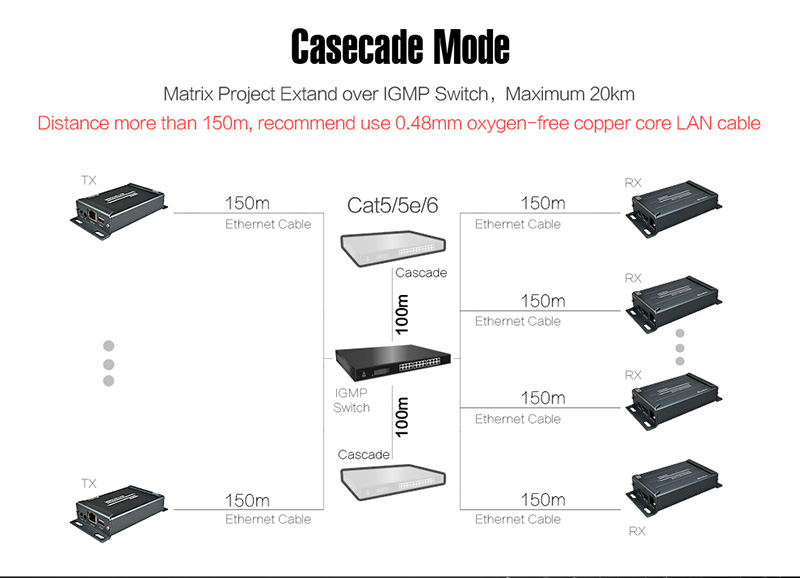

2. Signal enhance technology ensure 150meters transfer distance over CAT6 cable for HDMI 1080P FULL HD.

3. Powerful processing capability keep lower video latency < 150ms.

4. Sending IR signal from receiver side to sender side.

5. Integrated HDMI audio extractor output HDMI audio.

6. Supports 5V-12V wide range power supply.

Specs
Standard Power Input: 5V-12V
Power Consumption: 3W
HDMI Port: HDMI A type Female
Link Connection: UTP/STP CAT5/5e/6
Input Channels: Maxim 16Channels
Output Channels: Maxim 236Channels
Transfer Distance:
CAT5  100meters
CAT5e 120meters
CAT6  150meters
Audio Output Port: 3.5mm jacket
Audio Output Format: L/R Stereo analog audio
Resolution Supported:
1080p@50Hz / 1080p@60Hz / 1080p@24Hz
1080i@50Hz / 1080i@60Hz
720p@50Hz / 720p@60Hz /
576i@50Hz / 480p@60Hz
THD: <0.1%
SNR: 110dB
Latency: 120ms point to point
Operating Temperature: 0°C - 60°C
Storage Temperature : -20°C - 80°C
Humidity : 20% ~ 90% RH(Non-condensing)
