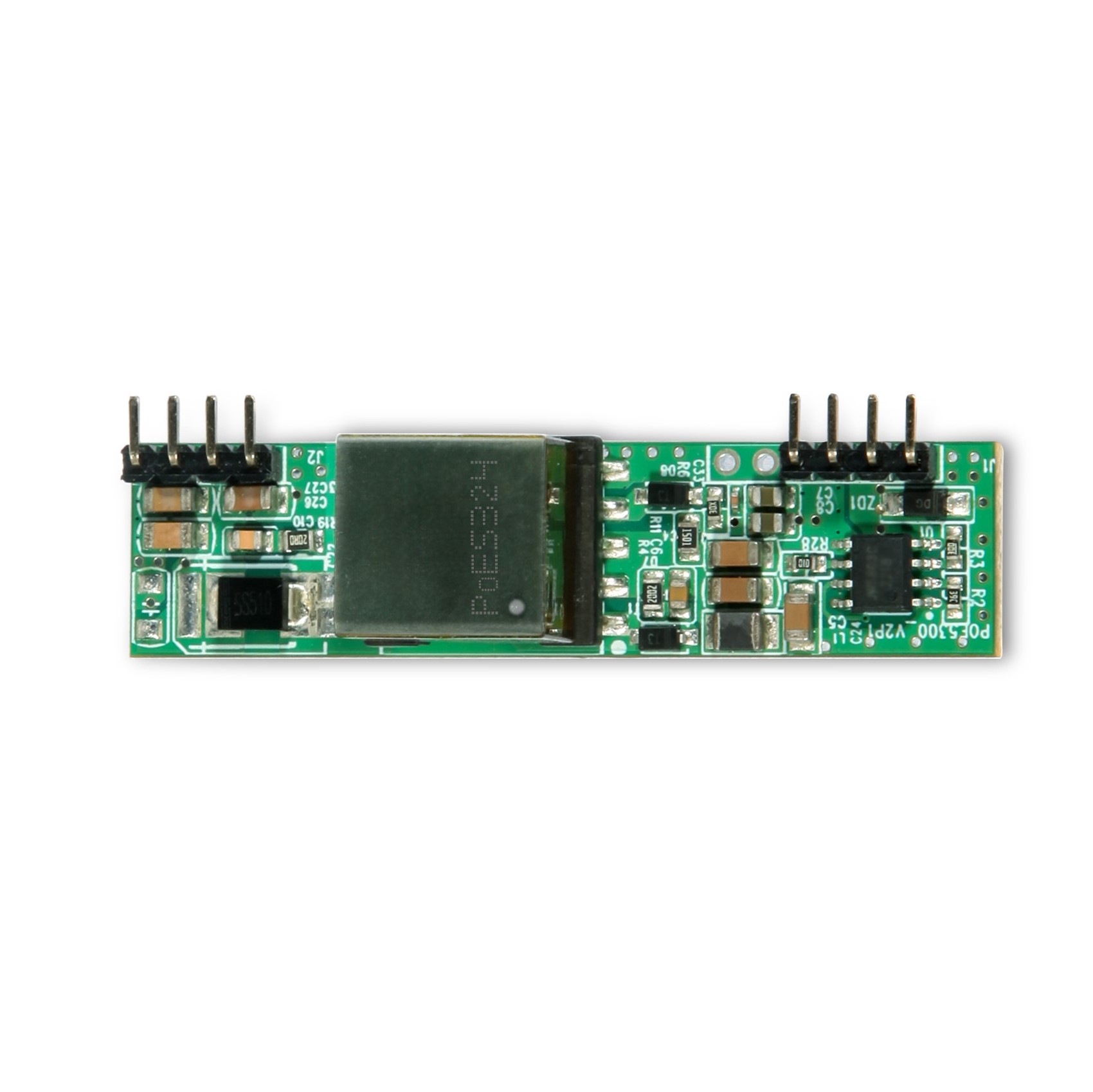

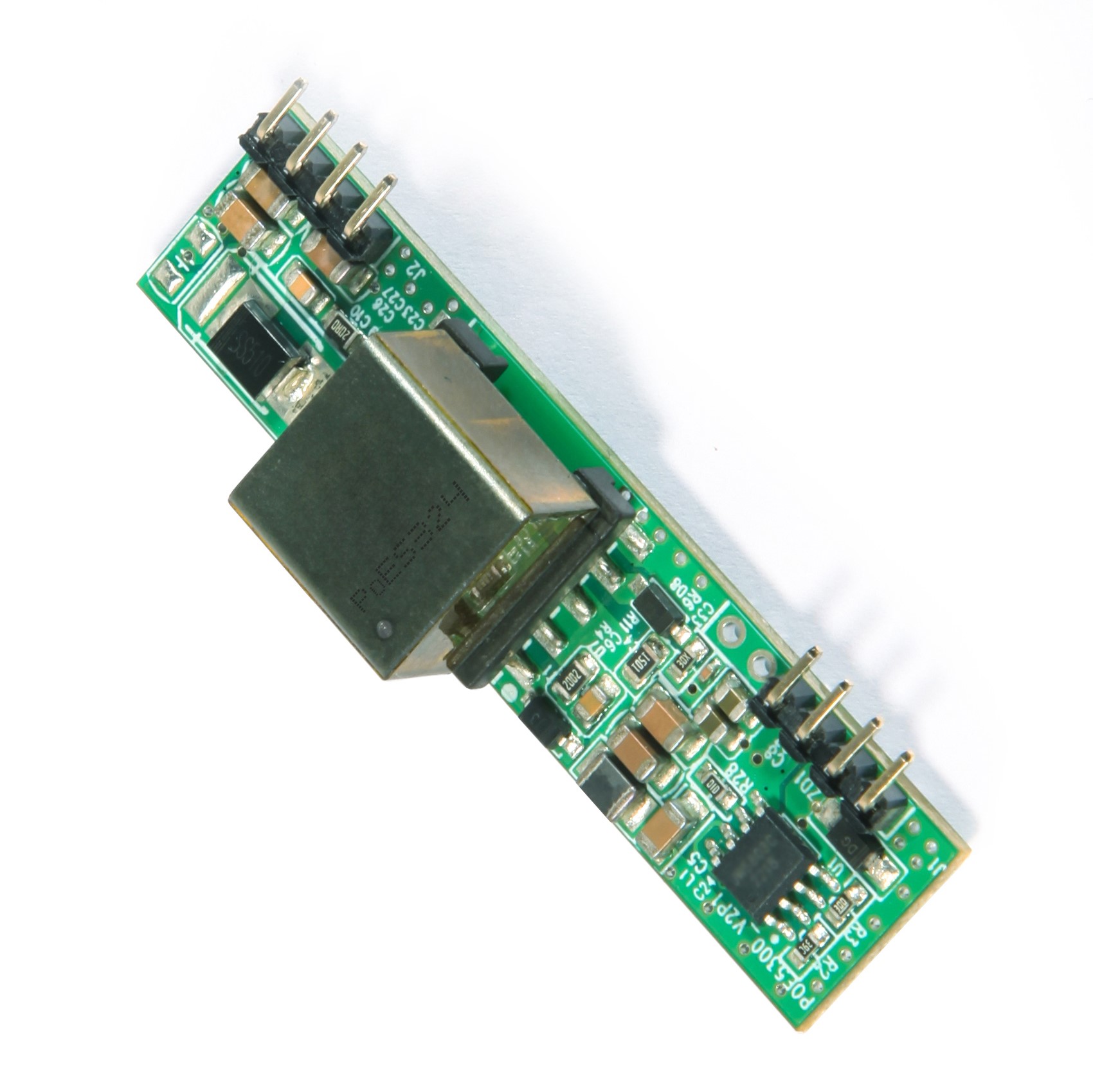

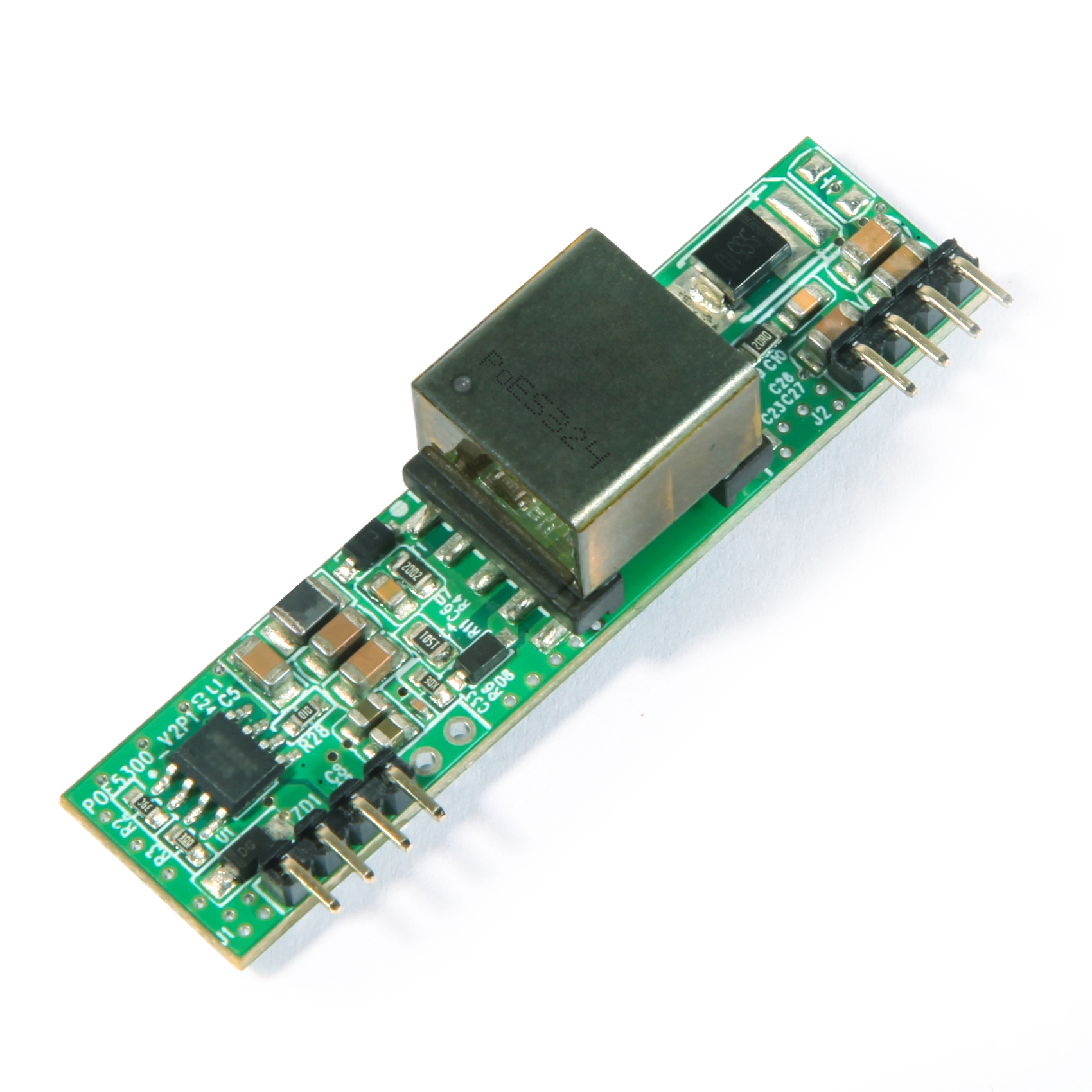

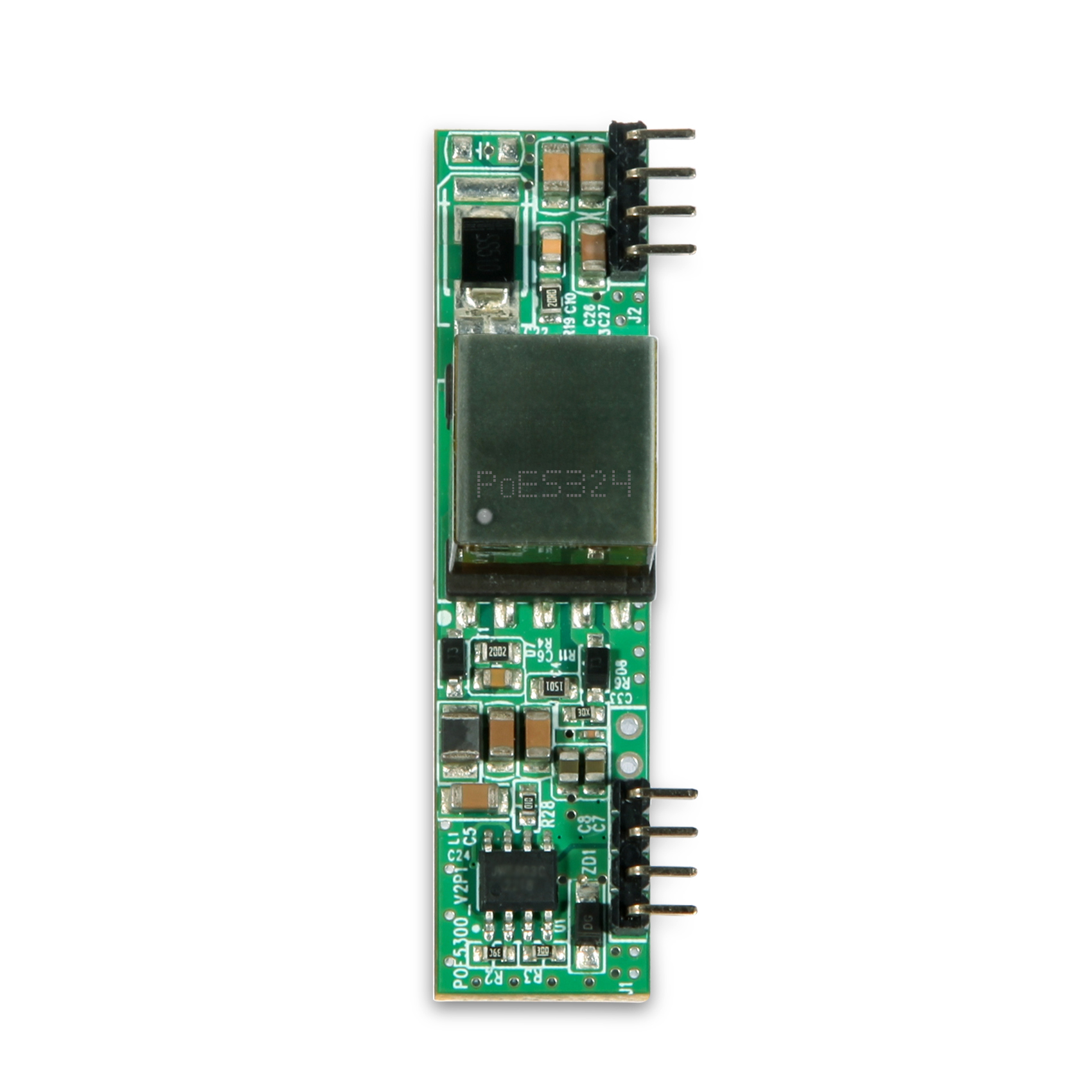

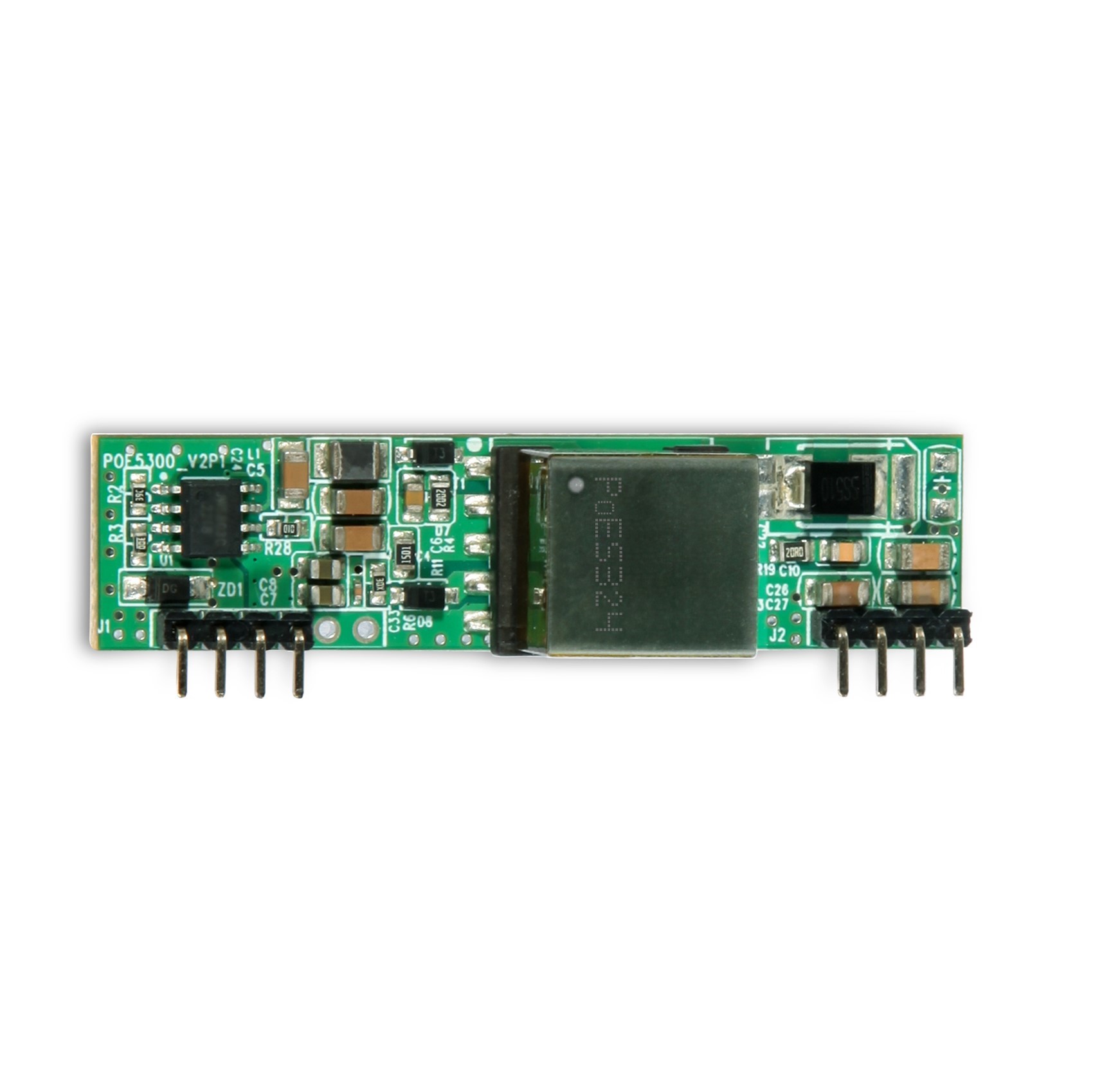

Power-over-Ethernet Plus Module-PoE5324

Features

IEEE802.3at and IEEE802.3af compliant

Maximum 30W peak output power*

Small Single In-Line package(SIP)size –

57.3mm (L) x 14mm (H)

Overload, short-circuit and thermal

protection

Adjustable output voltage

Minimal (low cost) external components

Low output ripple & noise

High efficiency DC/DC converter

1500Vdc isolation (input to output)

Design-in assistance

    File name File size Upload date Download
Overview

Description

The PoE5300** Power-over-Ethernet (PoE+) module is designed to extract power from a

conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at PoE

standard.

The PoE5300 has been designed to extract power from Power Sourcing Equipment (PSE)

over a conventional twisted pair Category 5 Ethernet cable. The module input conforms to

the IEEE803.2at standard for signature recognition and class programming.

The high efficiency DC/DC converter operates over a wide input voltage range with a low

ripple and low noise output. The DC/DC converter also has built-in output overload, output

short-circuit and over-temperature protection and provides a 1500Vdc (input to output)

isolation barrier.

*For PoE5300 and PoE5324 only.

**All references to the PoE5300 also apply to the PoE5305 and PoE5324
